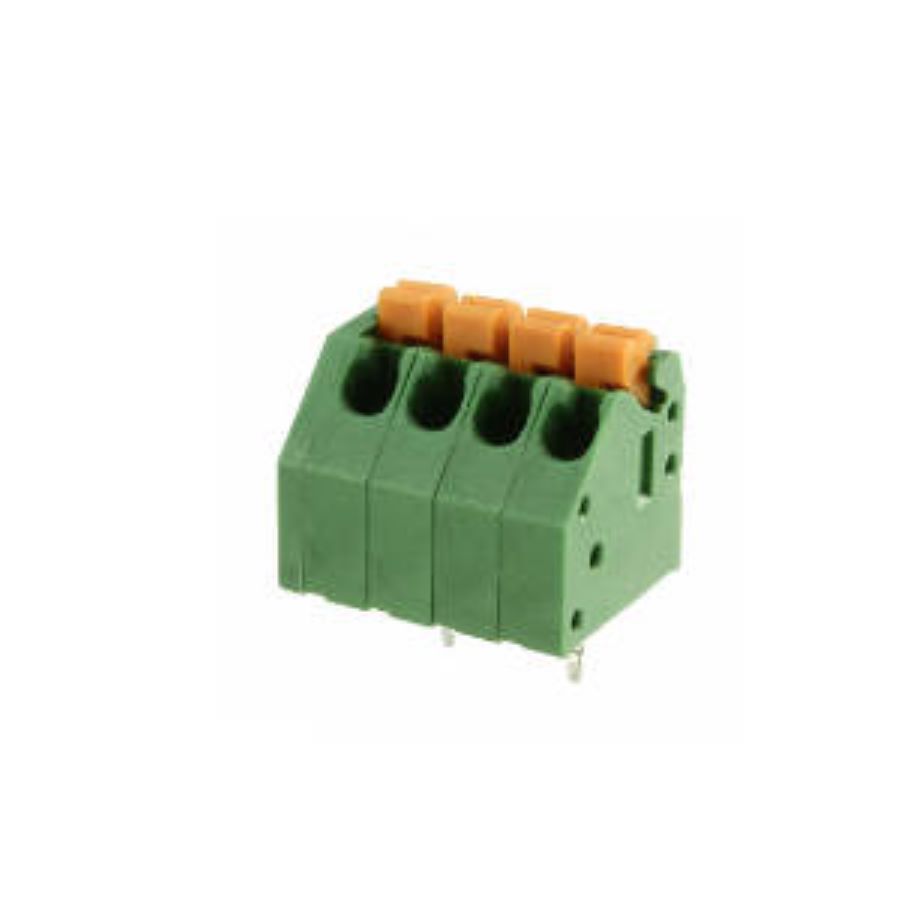

1-2834011-4
Manufacturer:
TE Connectivity
Mfr.Part #:
1-2834011-4
Datasheet:
Description:
Terminal Blocks Through Hole 4 3.5 mm 6 A 300 V 20 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Termination | Spring Clamp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 300 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 3.5 mm |
| Current Rating | 6 A |
| Max Current Rating | 6 A |
| Approvals | UL |
| Orientation | Vertical with Board |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Number of Contacts | 4 |
| Connector Type | Connector, Receptacle |
| Wire/Cable Gauge | 14 AWG |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Number of Positions Per Level | 4 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Contact Current Rating | 6 A |
| Housing Color | Green |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Connection Method | Push-In |
| Wire Gauge Range | 20 AWG to 14 AWG |
Stock: 44160
Distributors
pcbx
pcbxUnit Price$0.68167
Ext.Price$0.68167
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.68167 | $0.68167 |
| 10 | $0.49934 | $4.99340 |
| 25 | $0.43497 | $10.87425 |
| 50 | $0.39244 | $19.62200 |
| 100 | $0.35596 | $35.59600 |
| 300 | $0.33012 | $99.03600 |
| 500 | $0.30616 | $153.08000 |
| 1000 | $0.28394 | $283.94000 |
| 3000 | $0.26333 | $789.99000 |
| 5000 | $0.24421 | $1221.05000 |
